M 5.7 - 15 km NNE of Ljubinje, Bosnia and Herzegovina
- 2022-04-22 21:07:48 (UTC)
- 43.074°N 18.180°E
- 10.0 km depth
ShakeMap
- The data below are the most preferred data available
- The data below have NOT been reviewed by a scientist.
Processing
| Type | Module | Reference |
|---|---|---|
| GMPE | gmpe_us6000hfqj_custom | |
| IPE | VirtualIPE | |
| GMICE | WGRW12 | |
| CCF | LothBaker2013 | |
| Basin | None | |
| Directivity | None |
- Max magnitude to compute bias
- 7.7
- Maximum distance to include station in bias
- 120.0
- Use log amp to compute bias
- -
- Max allowed bias
- -
- Use log amp to compute bias
- -
- Min # of stations necessary to compute bias
- -
- Norm of the bias
- -
- Median distance used
- True
- Outlier level (# of std dev)
- 3.0
- Max magnitude to flag outliers
- 7.0
- Code
- 4.0.2+646.g680fce1
- Github commit
- 680fce15728e1d06c1616f4bd18d5dafb030de9a
- Map version
- 11
- Date
- 2022-06-24 21:27:19 (UTC)
| Map Version | Network | Processing Time | Comment |
|---|---|---|---|
| 1 | us | 2022-04-22 21:21:44 (UTC) | "Event added" |
| 2 | us | 2022-04-22 21:29:32 (UTC) | "Scheduled repeat" |
| 3 | us | 2022-04-22 21:38:50 (UTC) | "Origin updated" |
| 4 | us | 2022-04-22 21:56:23 (UTC) | "Data association" |
| 5 | us | 2022-04-22 23:08:07 (UTC) | "Scheduled repeat" |
| 6 | us | 2022-04-23 21:08:22 (UTC) | "Scheduled repeat" |
| 7 | us | 2022-04-30 21:07:14 (UTC) | "Origin updated" |
| 8 | us | 2022-05-24 03:37:43 (UTC) | "Origin updated" |
| 9 | us | 2022-06-16 21:04:07 (UTC) | "Event added" |
| 10 | us | 2022-06-17 22:13:02 (UTC) | "Event added" |
| 11 | us | 2022-06-24 21:26:39 (UTC) | "Event added" |
- Reference rock Vs30
- 760.0
- Site correction applied
- GMPE native
Output
| Type | Max Value in Grid | Max Value on Land | Bias |
|---|---|---|---|

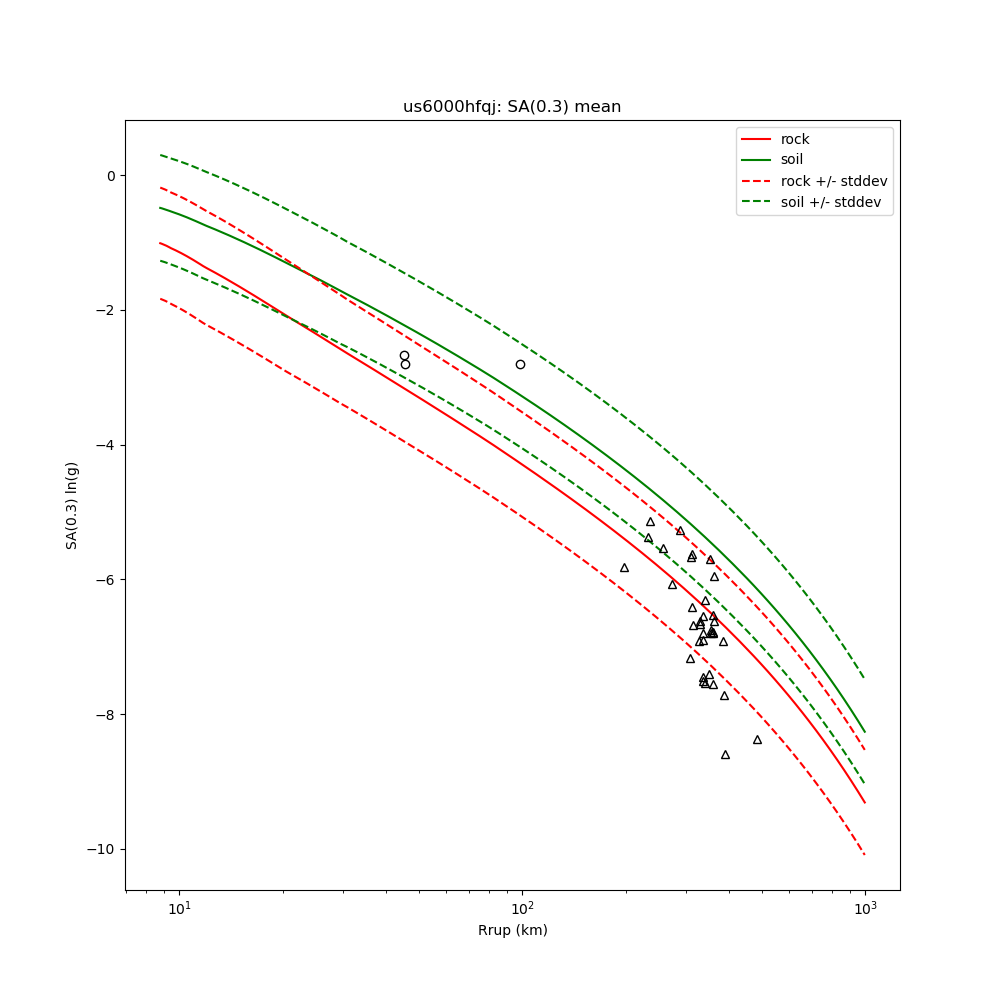

| SA(0.3 s) | 0.606 g | 0.606 g | 0.021 |

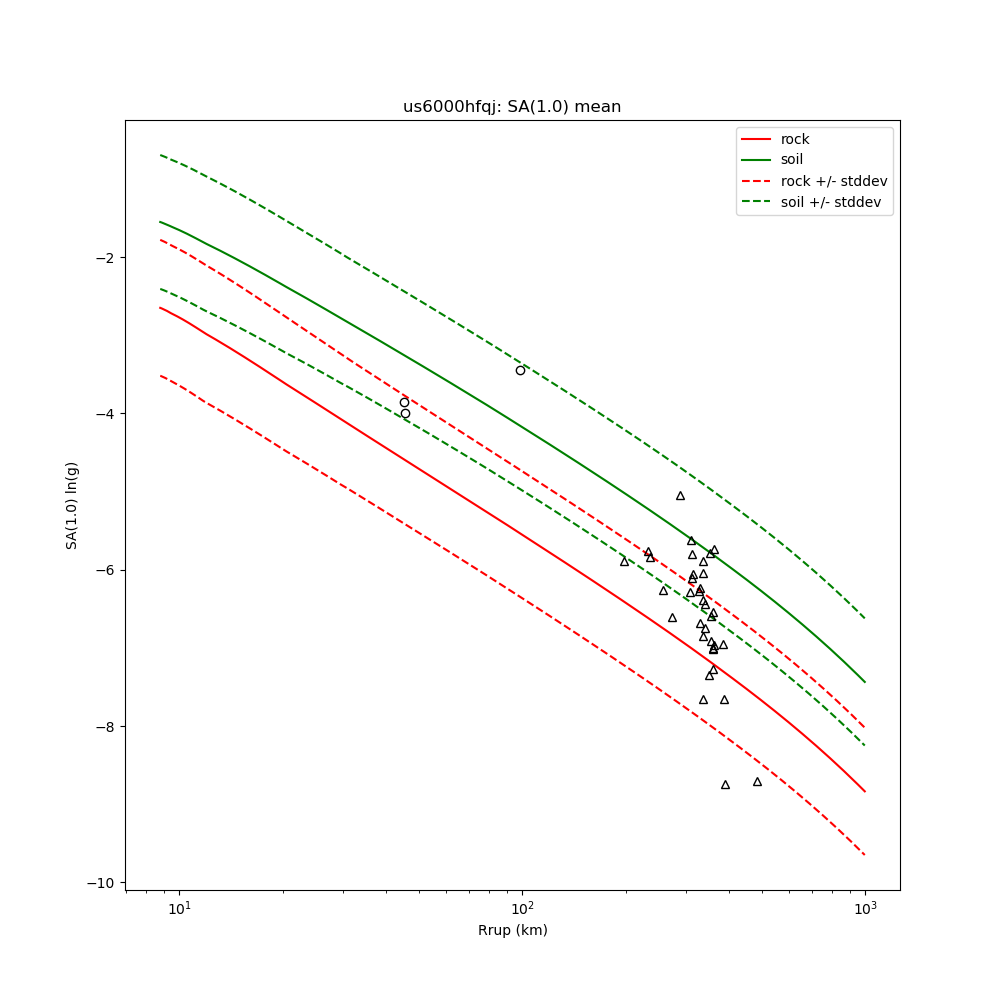

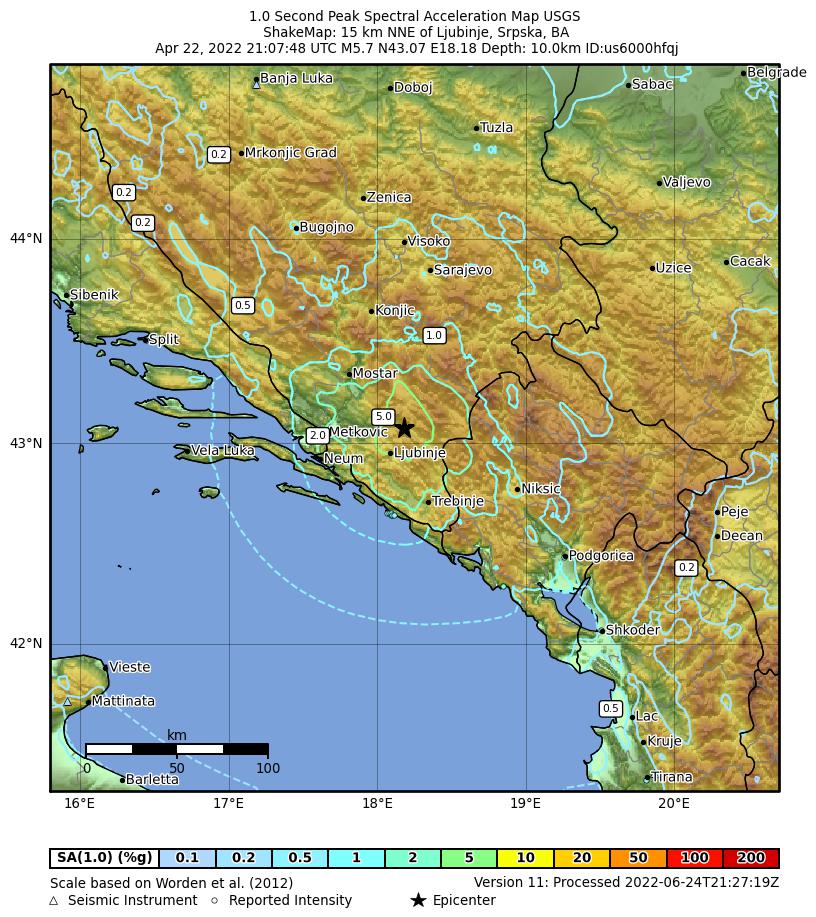

| SA(1.0 s) | 0.173 g | 0.173 g | 0.031 |

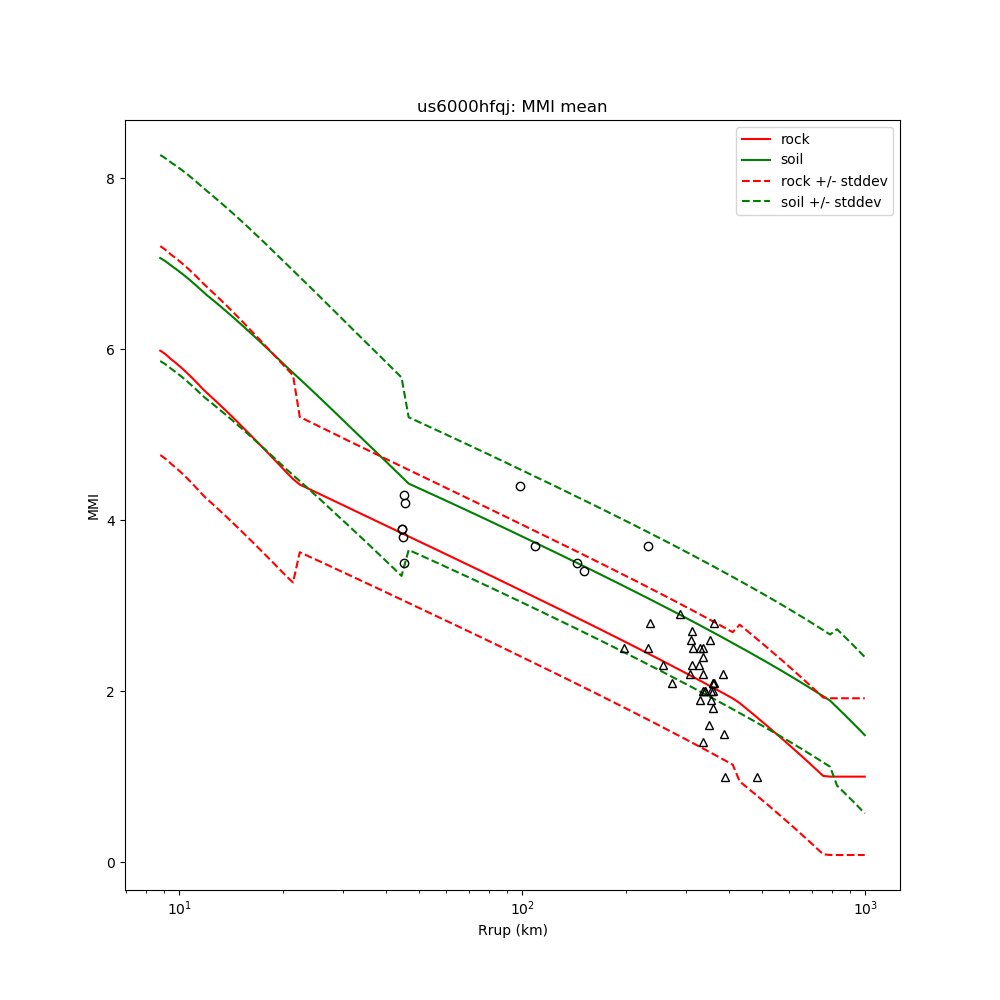

| Intensity | 6.864 intensity | 6.864 intensity | 0.031 |

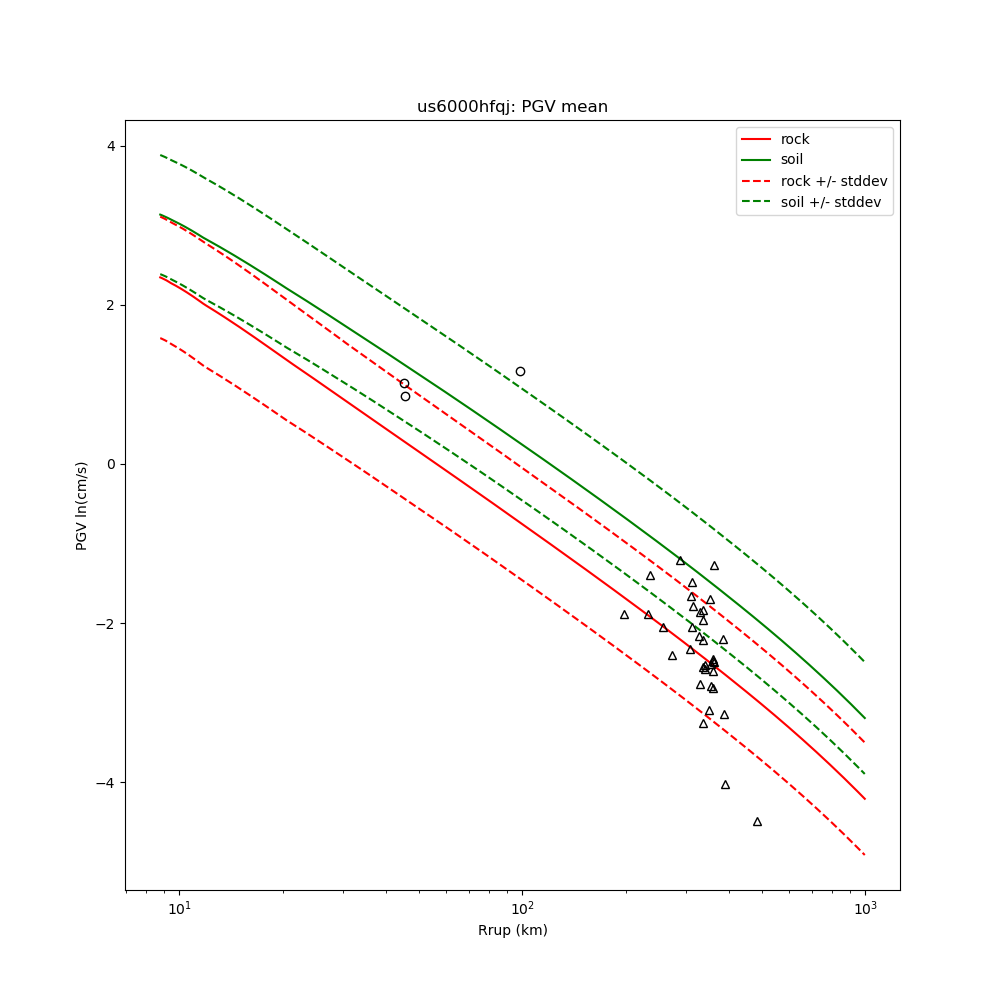

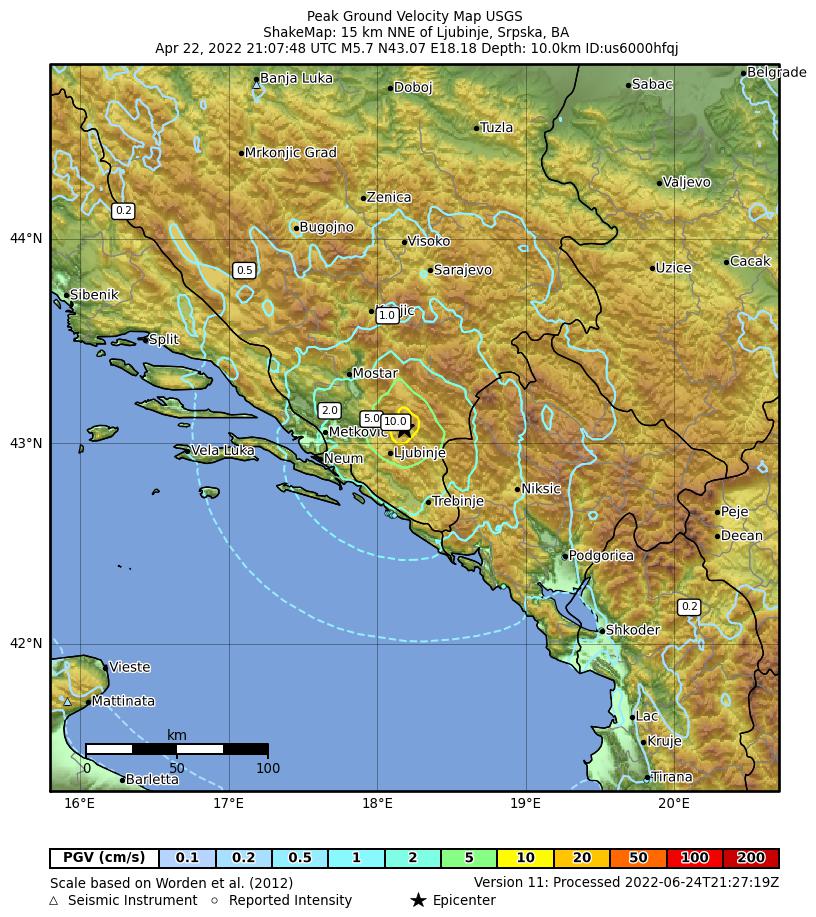

| PGV | 20.119 cms | 20.119 cms | 0.032 |

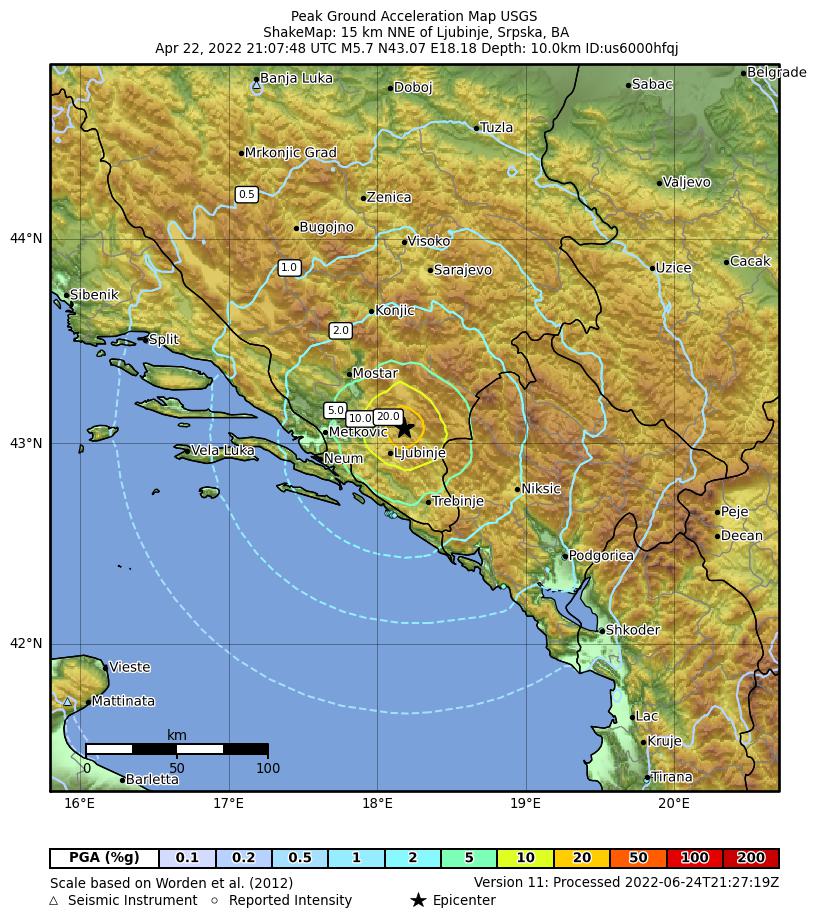

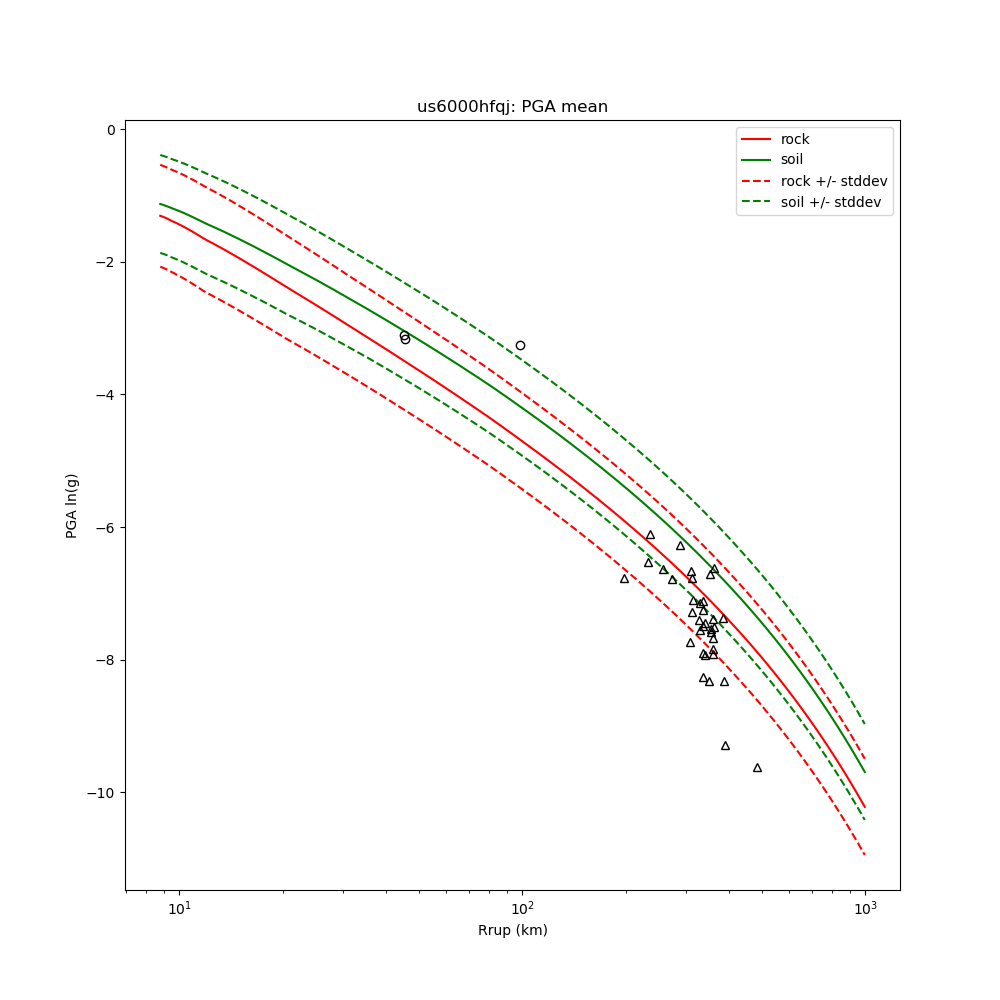

| PGA | 0.342 g | 0.342 g | 0.026 |

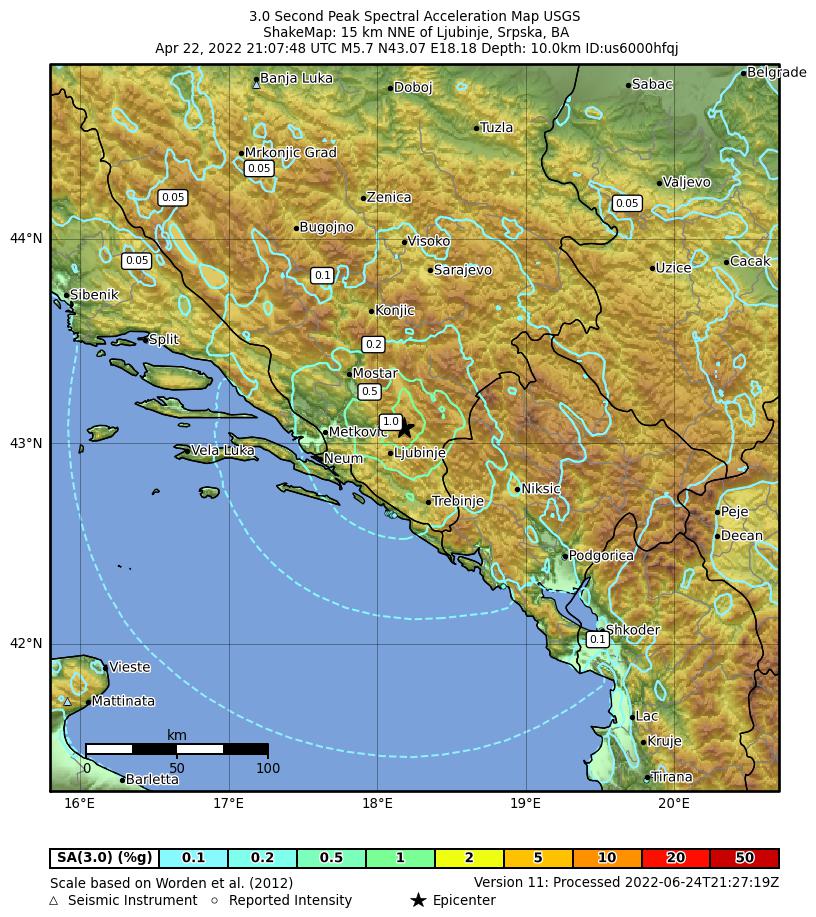

| SA(3.0 s) | 0.025 g | 0.025 g | 0.02 |
| Type | Latitude | Longitude |
|---|---|---|
| Number of points | 433 | 592 |
| Grid spacing | 0.0083333 degrees | 0.0083333 degrees |
| Span | 3.6 degrees | 4.925 degrees |
| Min | 41.25 degrees | 15.792 degrees |
| Max | 44.85 degrees | 20.717 degrees |
- Mean of map uncertainty
- 1.151
- Empirical ShakeMap grade
- D
- Flagged Seismic Stations
- 0
- Flagged DYFI stations
- 0
Input
- Description
- USGS NEIC ShakeMap
- ID
- us6000hfqj
- Magnitude
- 5.7
- Depth
- 10.0 km
- GPS location
- 43.074°N 18.180°E
- Origin time
- 2022-04-22 21:07:48 (UTC)
- Mechanism
- -
- Mechanism source
- RS
- Location
- 15 km NNE of Ljubinje, Srpska, BA
- Fault files
- -
- Fault reference
- Origin
- Number of seismic stations
- 35
- Number of DYFI stations
- 11
Ground Motion Models
| Name | Weight | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1.00 |
| Name | Weight | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1.00 |
| Name | Weight | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1.00 |
| Name | Weight | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1.00 |
| Name | Weight | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1.00 |
