M 6.5 - 56 km SSW of Nay Pyi Taw, Myanmar
- 1929-08-08 12:57:17 (UTC)
- 19.304°N 95.858°E
- 15.0 km depth
ShakeMap
- The data below are the most preferred data available
- The data below have NOT been reviewed by a scientist.
Processing
| Type | Module | Reference |
|---|---|---|
| GMPE | gmpe_iscgem908257_custom | |
| IPE | VirtualIPE | |
| GMICE | WGRW12 | |
| CCF | LothBaker2013 | |
| Basin | None | |
| Directivity | None |
- Max magnitude to compute bias
- 7.7
- Maximum distance to include station in bias
- 120.0
- Use log amp to compute bias
- -
- Max allowed bias
- -
- Use log amp to compute bias
- -
- Min # of stations necessary to compute bias
- -
- Norm of the bias
- -
- Median distance used
- True
- Outlier level (# of std dev)
- 3.0
- Max magnitude to flag outliers
- 7.0
- Code
- 4.0.2+335.gcbad862.dirty
- Github commit
- cbad8622bd520e1936447620edfb3a4feea1a8d9
- Map version
- 1
- Date
- 2020-06-06 20:24:02 (UTC)
| Map Version | Network | Processing Time | Comment |
|---|---|---|---|
| 1 | atlas | 2020-06-06 20:22:26 (UTC) | ShakeMap Atlas v4 |
- Reference rock Vs30
- 760.0
- Site correction applied
- GMPE native
Output
| Type | Max Value in Grid | Max Value on Land | Bias |
|---|---|---|---|

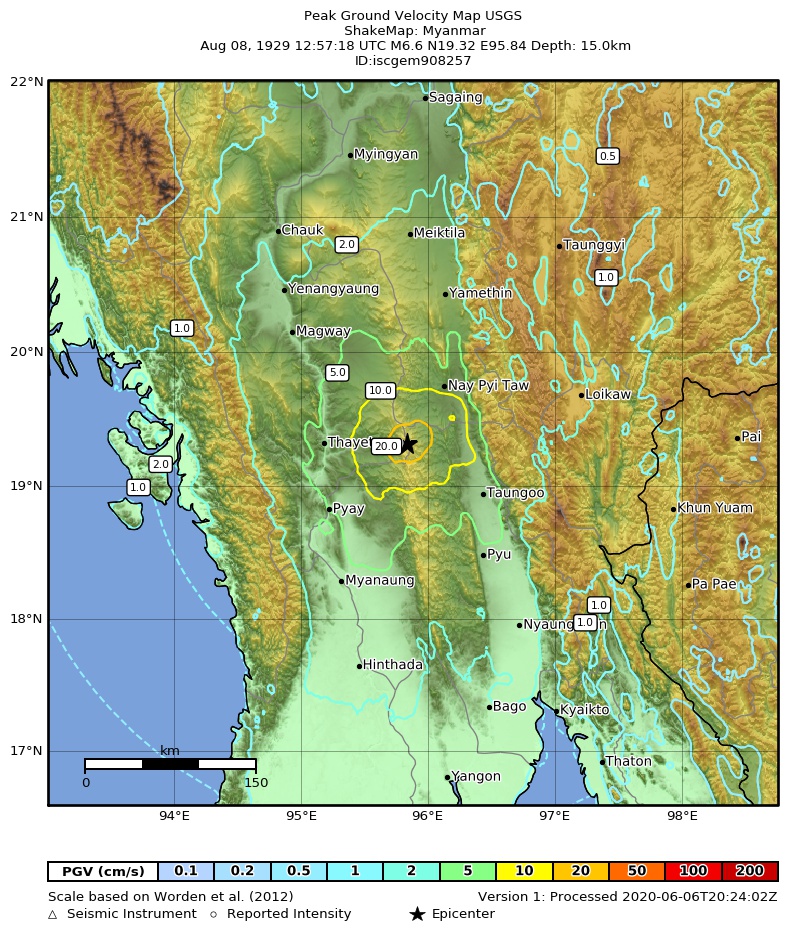

| PGV | 3.522 cms | 3.522 cms | - |

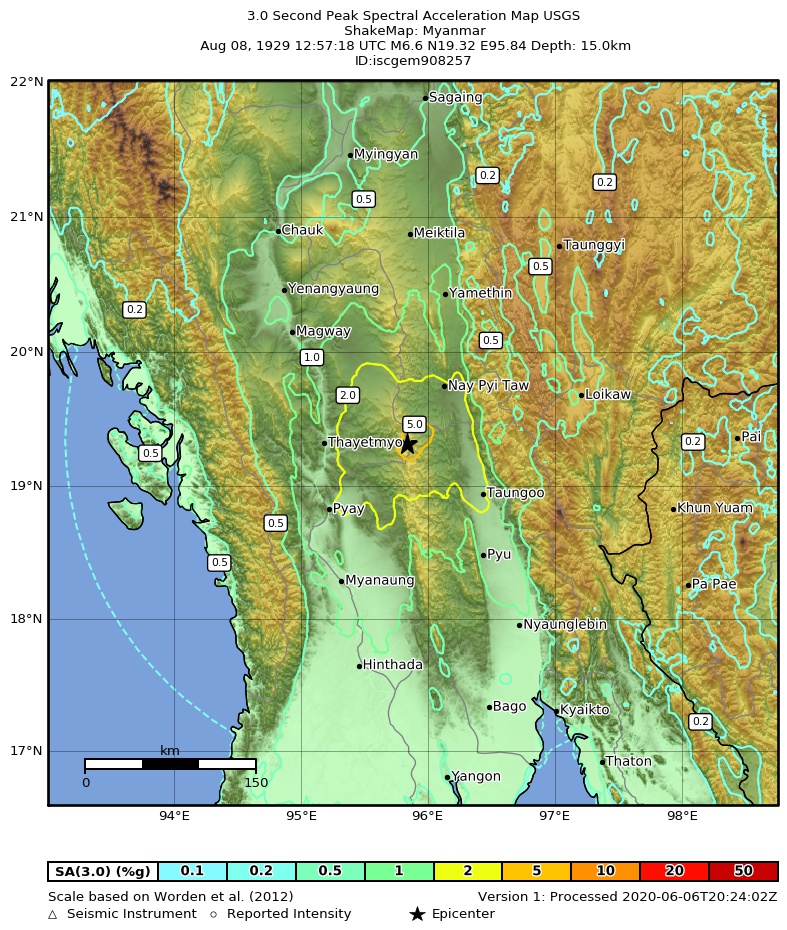

| SA(3.0 s) | 0.095 g | 0.095 g | - |
| SA(1.0 s) | 0.374 g | 0.374 g | - |
| Intensity | 6.712 intensity | 6.712 intensity | - |

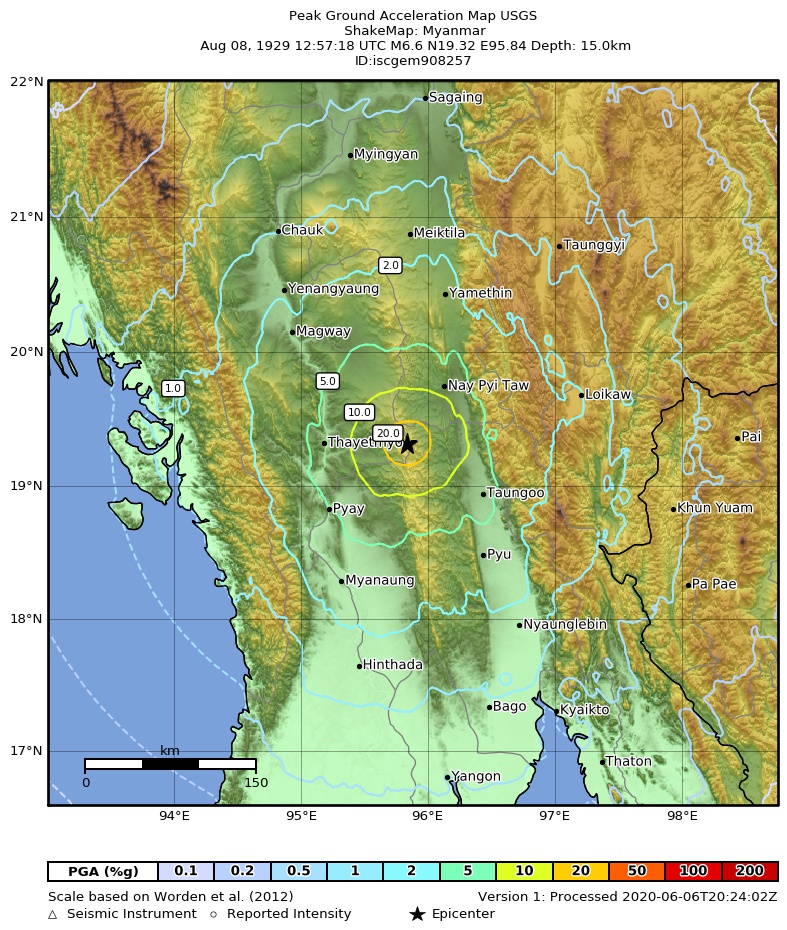

| PGA | 0.296 g | 0.296 g | - |
| SA(0.3 s) | 0.76 g | 0.76 g | - |
| Type | Latitude | Longitude |
|---|---|---|
| Number of points | 653 | 693 |
| Grid spacing | 0.0083333 degrees | 0.0083333 degrees |
| Span | 5.433 degrees | 5.767 degrees |
| Min | 16.583 degrees | 93 degrees |
| Max | 22.017 degrees | 98.767 degrees |
- Mean of map uncertainty
- -
- Empirical ShakeMap grade
- --
- Flagged Seismic Stations
- 0
- Flagged DYFI stations
- 0
Input
- Description
- ShakeMap Atlas v4
- ID
- iscgem908257
- Magnitude
- 6.6
- Depth
- 15.0 km
- GPS location
- 19.317°N 95.838°E
- Origin time
- 1929-08-08 12:57:18 (UTC)
- Mechanism
- -
- Mechanism source
- RS
- Location
- Myanmar
- Fault files
- -
- Fault reference
- Origin
- Number of seismic stations
- 0
- Number of DYFI stations
- 0
Ground Motion Models
| Name | Weight | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 0.39 | ||||||||||
| 0.52 | ||||||||||
| 0.09 |
| Name | Weight | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 0.39 | ||||||||||
| 0.52 | ||||||||||
| 0.09 |
| Name | Weight | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 0.39 | ||||||||||
| 0.52 | ||||||||||
| 0.09 |
| Name | Weight | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 0.39 | ||||||||||
| 0.52 | ||||||||||
| 0.09 |
| Name | Weight | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 0.39 | ||||||||||
| 0.52 | ||||||||||
| 0.09 |
