M 6.8 - 3 km W of Maruoka, Japan
- 1948-06-28 07:13:31 (UTC)
- 36.157°N 136.229°E
- 10.0 km depth
ShakeMap
- The data below are the most preferred data available
- The data below have NOT been reviewed by a scientist.
Processing
| Type | Module | Reference |
|---|---|---|
| GMPE | gmpe_iscgem897413_custom | |
| IPE | VirtualIPE | |
| GMICE | WGRW12 | |
| CCF | LothBaker2013 | |
| Basin | None | |
| Directivity | None |
- Max magnitude to compute bias
- 7.7
- Maximum distance to include station in bias
- 120.0
- Use log amp to compute bias
- -
- Max allowed bias
- -
- Use log amp to compute bias
- -
- Min # of stations necessary to compute bias
- -
- Norm of the bias
- -
- Median distance used
- True
- Outlier level (# of std dev)
- 3.0
- Max magnitude to flag outliers
- 7.0
- Code
- 4.0.2+335.gcbad862.dirty
- Github commit
- cbad8622bd520e1936447620edfb3a4feea1a8d9
- Map version
- 1
- Date
- 2020-06-05 20:02:05 (UTC)
| Map Version | Network | Processing Time | Comment |
|---|---|---|---|
| 1 | atlas | 2020-06-05 20:01:30 (UTC) | ShakeMap Atlas v4 |
- Reference rock Vs30
- 760.0
- Site correction applied
- GMPE native
Output
| Type | Max Value in Grid | Max Value on Land | Bias |
|---|---|---|---|
| Intensity | 6.757 intensity | 6.757 intensity | - |
| PGA | 0.32 g | 0.32 g | - |
| PGV | 3.846 cms | 3.846 cms | - |
| SA(1.0 s) | 0.548 g | 0.548 g | - |

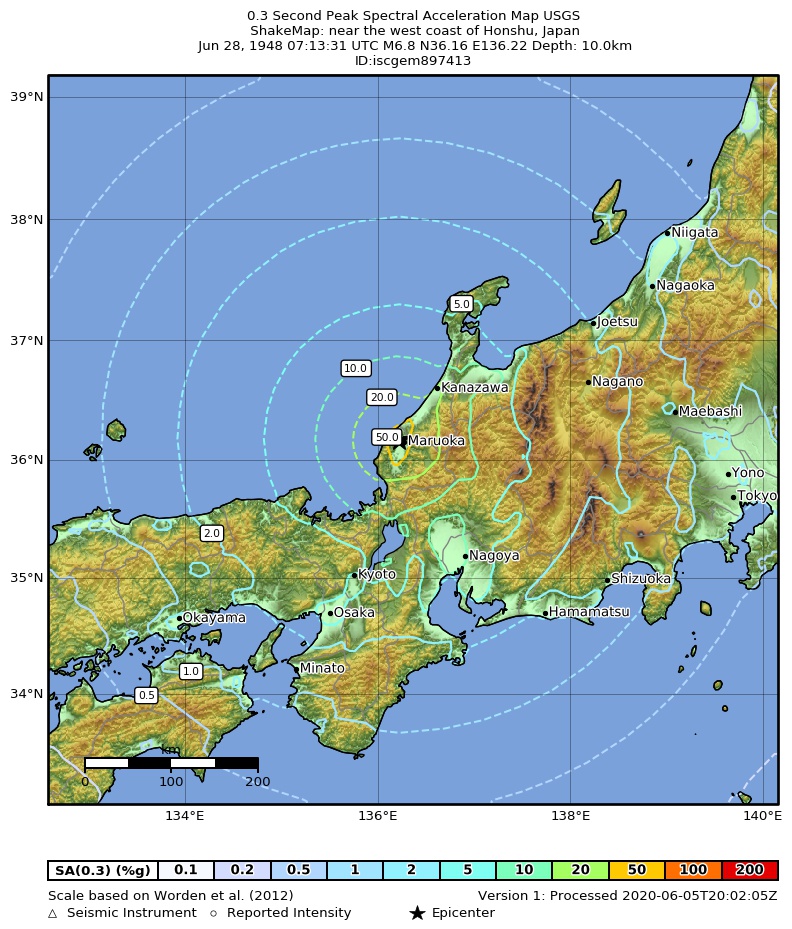

| SA(0.3 s) | 0.797 g | 0.797 g | - |

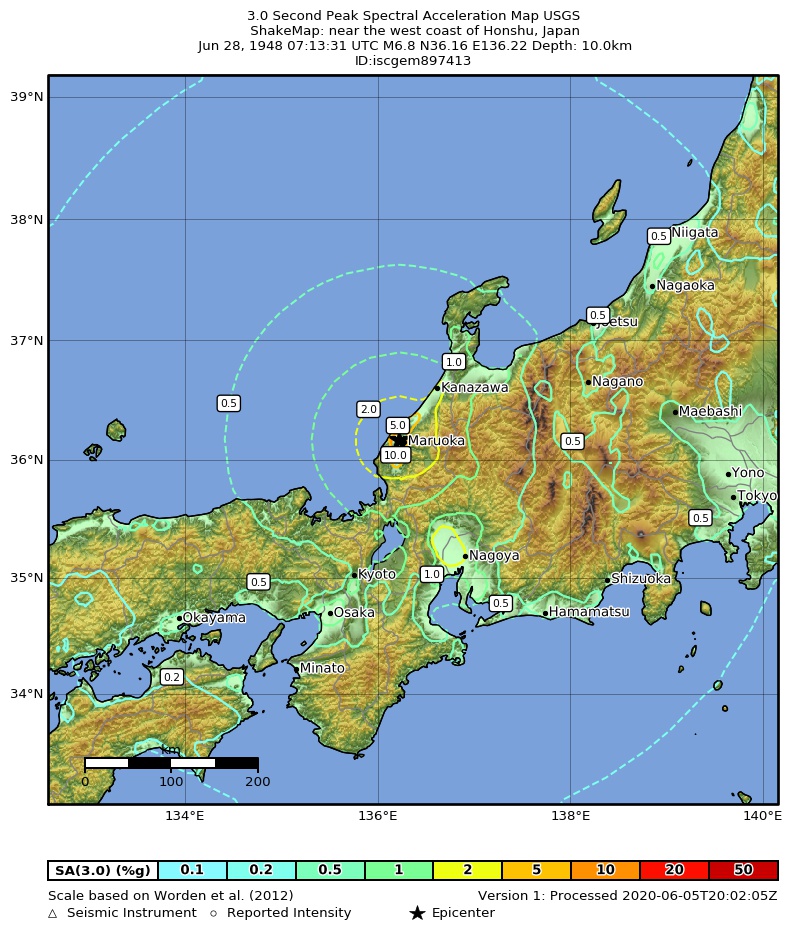

| SA(3.0 s) | 0.211 g | 0.211 g | - |
| Type | Latitude | Longitude |
|---|---|---|
| Number of points | 370 | 457 |
| Grid spacing | 0.0166667 degrees | 0.0166667 degrees |
| Span | 6.15 degrees | 7.6 degrees |
| Min | 33.033 degrees | 132.567 degrees |
| Max | 39.183 degrees | 140.167 degrees |
- Mean of map uncertainty
- -
- Empirical ShakeMap grade
- --
- Flagged Seismic Stations
- 0
- Flagged DYFI stations
- 0
Input
- Description
- ShakeMap Atlas v4
- ID
- iscgem897413
- Magnitude
- 6.8
- Depth
- 10.0 km
- GPS location
- 36.164°N 136.222°E
- Origin time
- 1948-06-28 07:13:31 (UTC)
- Mechanism
- -
- Mechanism source
- SS
- Location
- near the west coast of Honshu, Japan
- Fault files
- -
- Fault reference
- Origin
- Number of seismic stations
- 0
- Number of DYFI stations
- 0
Ground Motion Models
| Name | Weight | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 0.96 | ||||||||||
| 0.04 |
| Name | Weight | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 0.96 | ||||||||||
| 0.04 |
| Name | Weight | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 0.96 | ||||||||||
| 0.04 |
| Name | Weight | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 0.96 | ||||||||||
| 0.04 |
| Name | Weight | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 0.96 | ||||||||||
| 0.04 |
